S1 Sport+
Compact AND intensive! The sports version with Pro components gives you maximum driving pleasure in the smallest space.
VARIANTS
CONFIGURATOR
SPECIFICATION
SimSteering2 steering motor
The Leo Bodnar SimSteering2 system is used in motorsport teams' simulators and consists of a high-quality servo motor, which enables various torque settings from 16nm — 20nm. The reliable motor is adjustable in terms of steering angle, steering force, friction and damping and is the gold standard for steering motors.

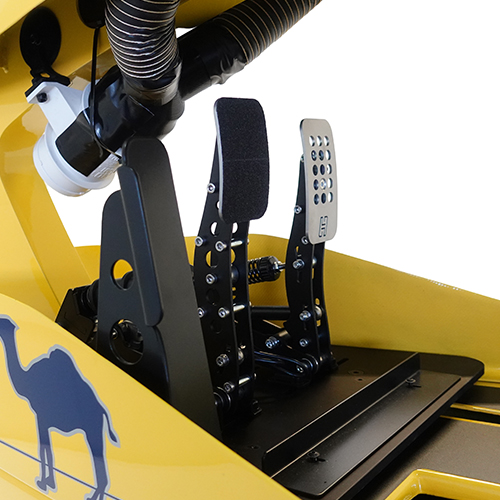

HE Ultimate+ pedals
Adjustable pedal geometry and braking force. The Heusinkveld Ultimate+ pedals provide 140kg braking power and are attached to the configurable RFS base plate. The package includes the gas and brake pedals.
- Premium pedal set for realistic acceleration and braking maneuvers
- Adjustable pedals ensure comfort even during longer racing sessions
- Plug and play via USB port
- Load cell sensors register inputs and pass them on to the vehicle
- Made entirely of stainless steel for long-lasting track adventures
- Clutch pedal can be selected in the configurator
SAMSUNG CURVED MONITOR
The silver Samsung Odyssey Oled G9 with 4K resolution (5120x1440p) and 240Hz image playback speed is currently being used. The use of curved monitors saves graphics card resources and is popular with racers and sim racers due to its appearance and handling. The specific mount ensures a wobble-free driving experience.
Clubsport Racing PC
RTX5060, Intel i5 processor, M2 1TB SSD, 16GB DDR4, including settings and RFS software pack
You drive with the latest components that take you over virtual kilometers with powerful performance. In addition to the perfect hardware settings and individual settings of your simulator, the following simulation titles are installed:
- Assetto Corsa 1 with an exclusive wide selection of tracks and vehicles
- Assetto Corsa Competizione
- Dirt Rally 2
On request: iRacing, Le Mans Ultimate, rFactor2, AC Evo (from 2026)
Design-winning chassis
Design-winning chassis (Red Dot Design Award):
The Stage 1 is a European-made construction with elegant and individually designable GRP cladding. Ergonomic adjustment options for seat angle, steering motor distance and pedal distance (pedal-slider) and a comfortable entry height. Small stand for a racing experience that saves as much space as possible. Traction-Loss can only be installed after an upgrade on a large stand (available upon request).
Get in and drive off:
The simulator is factory-assembled, tested and tested. All PCs and control devices are neatly connected and wired without annoying cable clutter after factory assembly.
The SPORT+ version feels like driving:
The combination of exquisite components provides a uniquely direct driving experience at the steering wheel and helps racers achieve their goals on the real racetrack. With additional haptic options such as the belt tensioner, you can make the virtual route more “noticeable”.
Stage 1 Sport+ is now used as a training tool for DTM, GT World Challenge, Porsche Sports Cup Suisse drivers and more.
Other periphery
Other equipment from the SPORT+ version:
- OMP ARS seat (XL seat can be requested free of charge after purchase)
- RacingFuel LCD Dashboard
- Beyerdynamics MMX 300 headphones
- Creative Sound BlasterX G6 amplifier
OPTIONAL
INSTALLATION ON SITE
Can be added during the checkout process. We will personally bring the simulator to your home and assist you with the delivery, installation of the monitor and give you instructions on your new training equipment.
PERSONAL DESIGN
Individual hand painting including preview rendering. Logo rights must be clarified beforehand or the simulator may only be used privately if the logos are protected.
Design examples from S1 Sport will follow. Here are examples of the Pro model: View design examples
seatbelt tensioner
With our brand-new motion belt tensioner, you'll experience braking and G-forces just like in a real race car:
- Immersive feeling of lag for maximum simulation
- Ultra-fast & quiet actuator for direct response times
- Safety spring & 6-point belt for an authentic racing experience
- Includes controller & software — plug & play for your sim rig
photos
DELIVERY INFORMATION
Delivery and installation
“Delivery by truck” shipping method
The simulator is delivered on a pallet. The monitor is stored separately in a package.
We regularly recommend another helper. When tackling stairwells and spiral staircases, we recommend 2 more helpers. After removing the seat by tilting it on the nose, the simulator fits into a single-person lift. Once the simulator is in place, all you have to do is mount the monitor carefully. With the push of a button, you can turn on the PC and start driving. On request, we also provide a simulator briefing via remote session.
“Installation on site” shipping method
The simulator is delivered by transporter by one of our technicians. He can mount the monitor and individually instruct you in the racing simulator.
ADVICE AND EXECUTION
If you are still unsure, you can always contact us by phone or email. You can test drive every simulator in our race centers.
After payment has been received, we will contact you by phone and inform you about the further process. You are welcome to make any additional requests.
dimensions
- Length: 180 cm (with fitted seat)
- Width: 75 cm (feet); 120 cm (with monitor)
- Height: 90 cm (steering motor basket frame height); 125 cm (with monitor)
- Weight: approx. 70 kg (without monitor); approx. 80 kg (with monitor)
Rider height: 150-200 cm
Maximum load: 140 kg
Note for EU customers
When delivering to the EU, there are also Import duties and local taxes to (e.g. 19% in Germany), which not included in the purchase price and are only added at checkout. We would be happy to advise you by phone.
PROFESSIONAL SUPPORT
As a Racingfuel customer, your satisfaction is paramount. Therefore, you not only have regular warranty claims, but you can also contact us by telephone if you order a factory-assembled device.
In addition, we will inform you 3-4 times a year about the latest upgrades, settings and optional maintenance subscriptions.
The latest user manual and support services can be found in the support area of the homepage.
Guarantee and returns
warranty
Your simulator is marked with a unique chassis number and is recorded in our support database.
Our products are covered by a manufacturer's warranty of 2 years from date of delivery.
The warranty covers defects in materials and workmanship under normal use.
In the event of a warranty claim, we will repair or replace at our own discretion.
Return and Withdrawal
Since our factory-assembled simulators are custom-made products, a return is a matter of principle only in case of transport damage or manufacturing defects possible.
instruction manual
Videos
FAQ
Can I upgrade the STAGE1 Sport with motion modules?
If you reorder the “large stand” from us, we can also integrate the Traction Loss or Full Motion System.
What kind of support am I eligible for?
RFAG offers a maintenance and license agreement for its professional automotive sport simulators. It regulates the terms and conditions for maintenance, repairs and updates to the devices. RFAG also offers an online server where simulator owners can regularly compete against each other. The contract is available upon request, and the guide can be found in the “Support” section. The warranty information provided by the respective manufacturer applies to all third-party components. We can also provide emergency support for non-customers.
Is delivery included in the price?
No, delivery can be added to the checkout
Do prices include VAT?
No, because delivery to the EU also includes Import duties and local taxes to (e.g. 19% in Germany), which not included in the purchase price and are only added at checkout. We would be happy to advise you by phone.
Can I operate a racing center with multiple STAGE1 SPORTs?
Yes, we offer integrative solutions for independent centers, but can also help you with business planning from A to Z if you are interested in a RacingFuel Academy franchise.
What ergonomic adjustment options are available?
Both the pedals and the steering wheel can be adjusted lengthwise to the usual body sizes of adults. The angle of inclination, depth and height can be adjusted on the specially designed steering wheel mount. The mounted racing seat can be adjusted both in height and in angle of inclination. This means that every sitting position can be adjusted, from a Formula racing car (lying down) to a touring car (upright).
Why are only SimSteering2 steering systems installed?
Compared to other direct-drive systems, the SimSteering2 system is characterized by very good force feedback and high reliability both in the private and especially in the commercial sector. The motor and control box can be modulated and comply with industry standards. Our long-standing relationship with Leo Bodnar Electronics enables fast delivery times as well as fast and flawless support.
Where can I test the simulator?
By appointment, you are welcome to visit us at the RacingFuel Academy in Horgen. During the on and off season, we also attend numerous trade fairs and motorsport events.
